SOUND MAGUS HD 1200.4

HD1200.4 Compact Premium Class D Car Audio Amplifier

The HD1200.4 is a high-efficiency Class D amplifier designed to deliver exceptional power density within a compact enclosure. Engineered for automotive integration, it provides audiophile-grade performance while maintaining installation flexibility. This paper outlines the amplifier’s topology, performance metrics, and protection mechanisms, emphasizing its suitability for demanding car audio applications.

Introduction

Modern automotive sound systems require amplification solutions that balance compactness, thermal efficiency, and high-fidelity audio reproduction. The HD1200.4 embodies these design imperatives through advanced Class D topology, enabling high continuous power output with low distortion. Its small footprint allows for installation in confined vehicle spaces without sacrificing sonic performance.

Electrical & Acoustic Performance

• Amplifier Topology: Class D switching architecture ensures maximum efficiency and reduced thermal losses, enabling sustained operation under demanding loads.

• Rated Output Power (RMS, ≤1% THD+N):

  • 200 W × 4 @ 4 Ω

  • 300 W × 4 @ 2 Ω

  • 600 W × 2 @ 4 Ω bridged

• Frequency Response: 15 Hz – 25 kHz (–3 dB), ensuring full-range signal reproduction from sub-bass to high treble.

• Signal-to-Noise Ratio:

  • 98 dB (A-weighted) @ rated power

  • 78 dB (A-weighted) @ 1 W (CEA-2006 standard)

• THD+N: <0.02% @ 70 W, 4 Ω, 1 kHz — indicative of ultra-low distortion characteristics.

System Integration

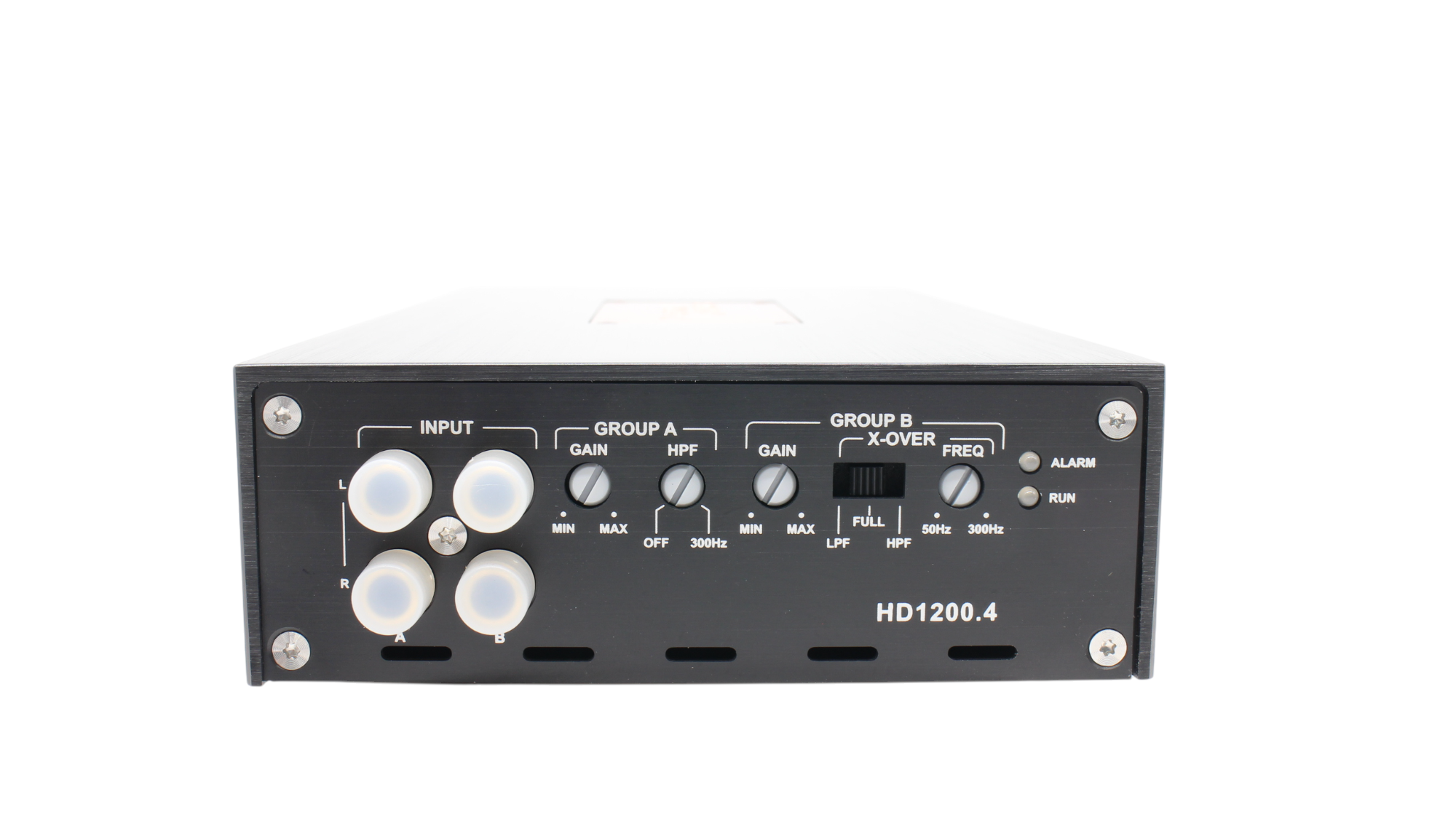

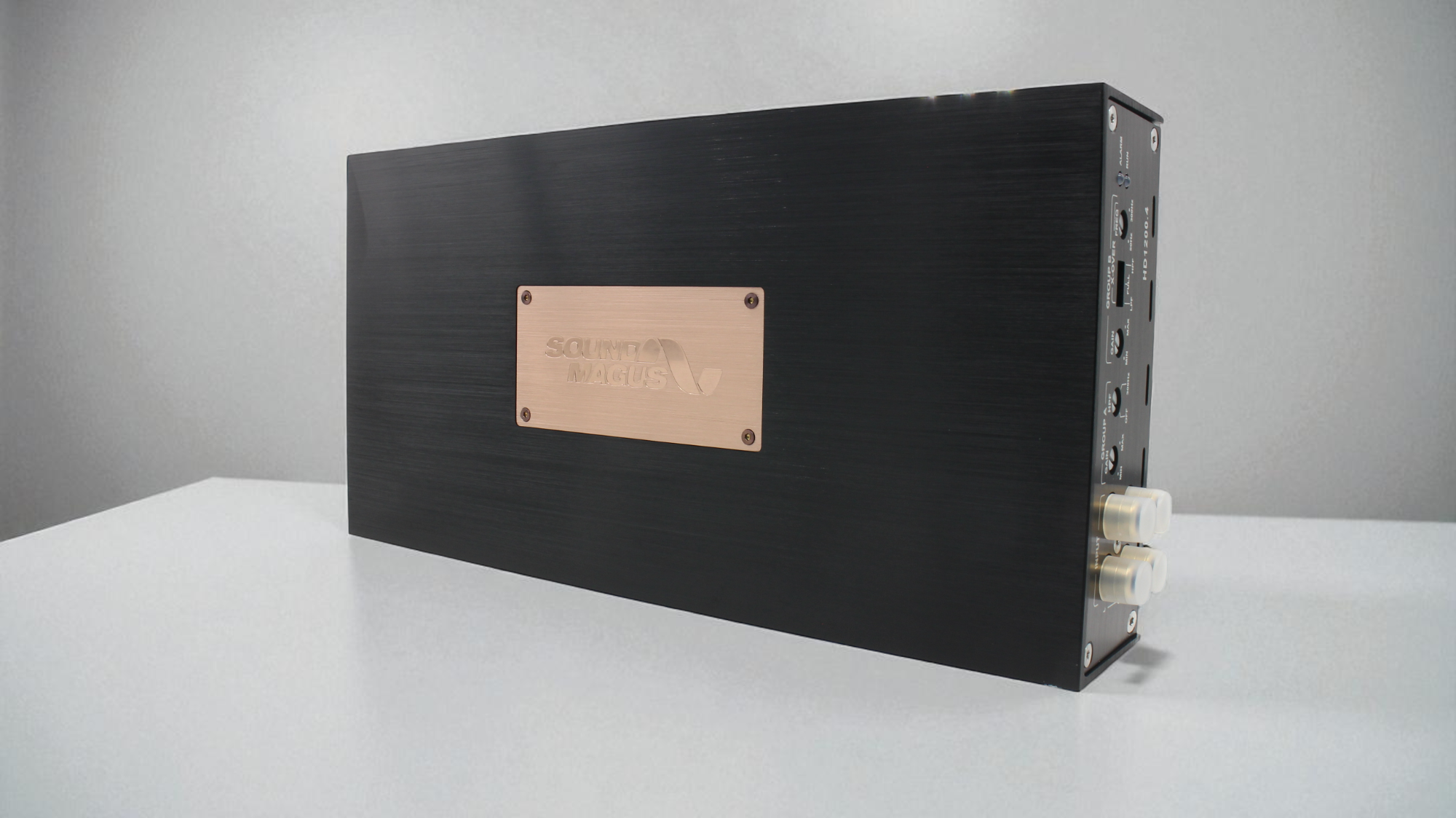

• Input Sensitivity: 0.2–5 V, compatible with both OEM and aftermarket head units.

• Auto Turn-On: Remote (REM) functionality for seamless system triggering.

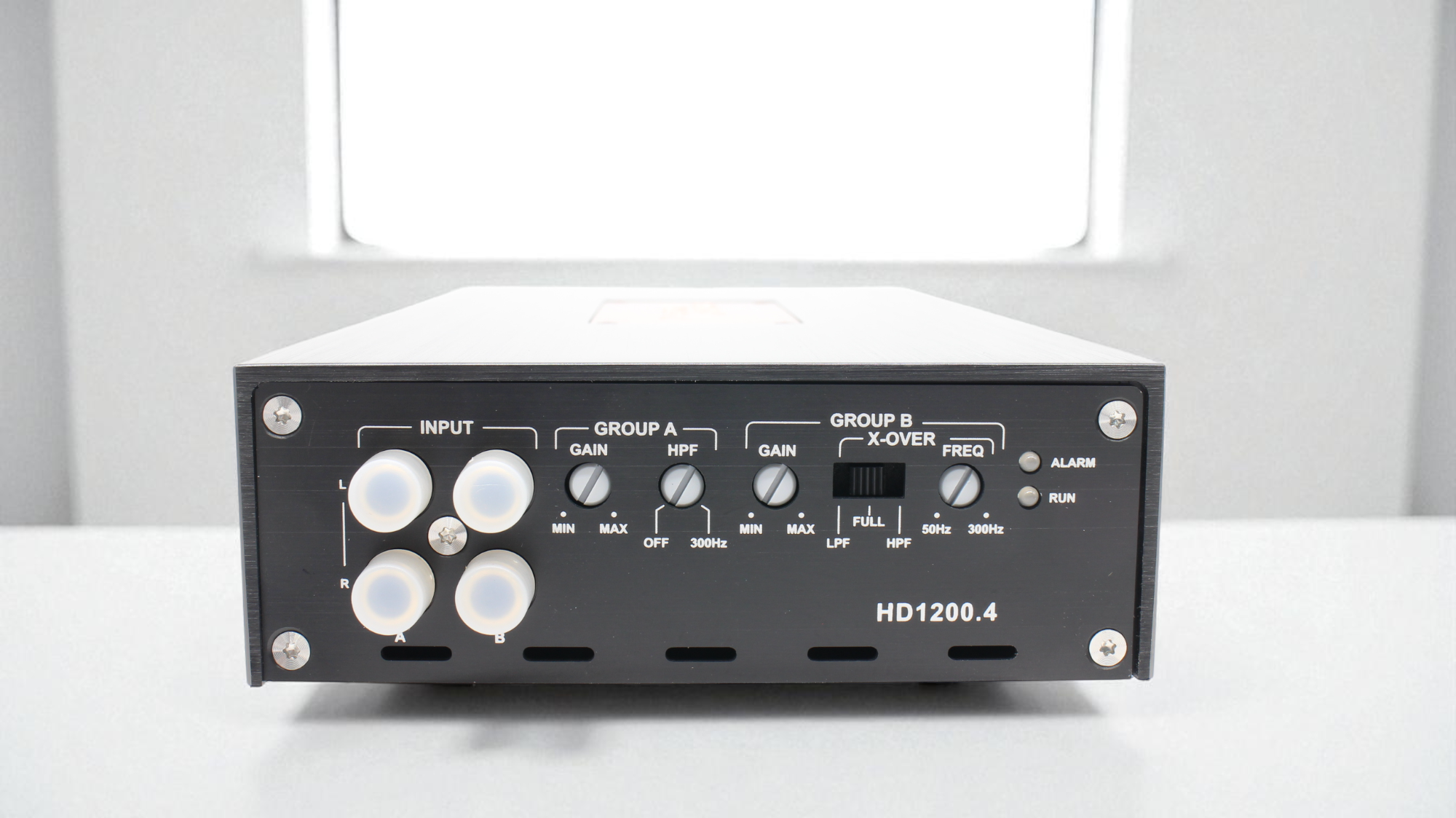

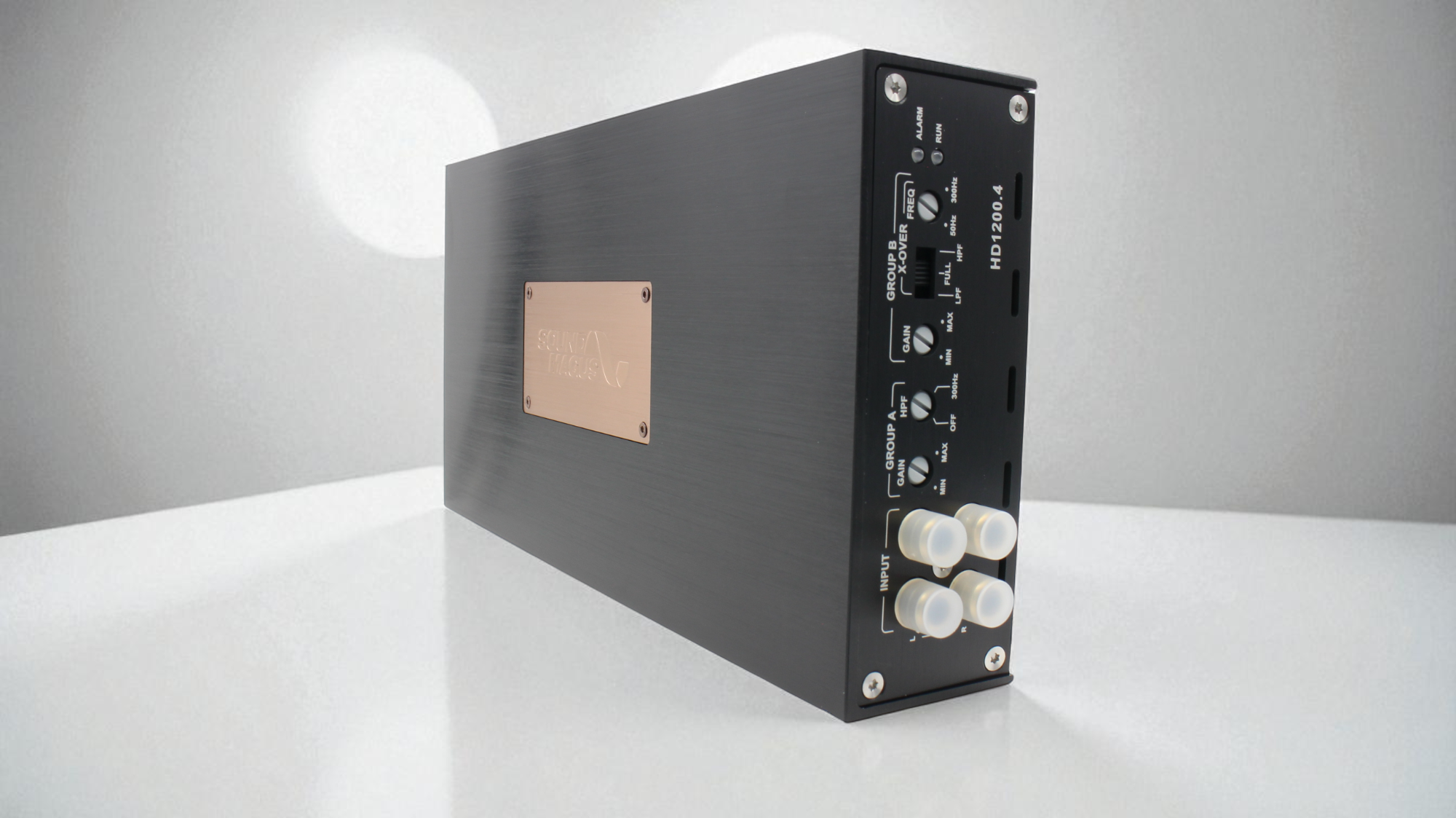

• Filter Capabilities: Switchable Full, HPF, LPF with 12 dB/octave slope.

• Frequency Control Ranges:

  • HPF: OFF–300 Hz (Group A)

  • LPF/HPF: 50–300 Hz (Group B)

Protection & Reliability

The amplifier incorporates comprehensive safety protocols: overload, short-circuit, thermal shutdown, under-voltage, and over-voltage protection. This multi-layered approach ensures long-term reliability under variable automotive conditions.

Mechanical Design

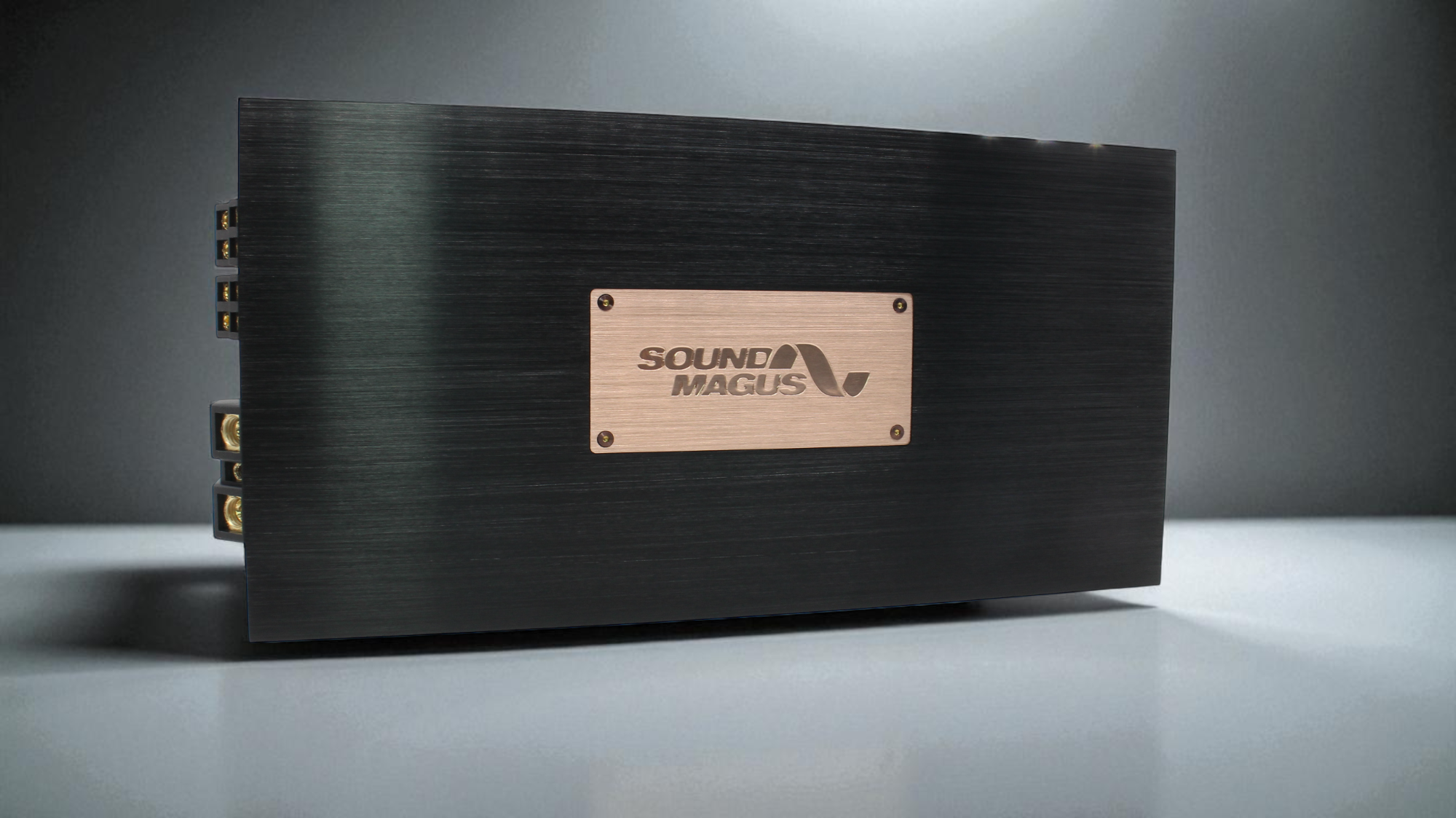

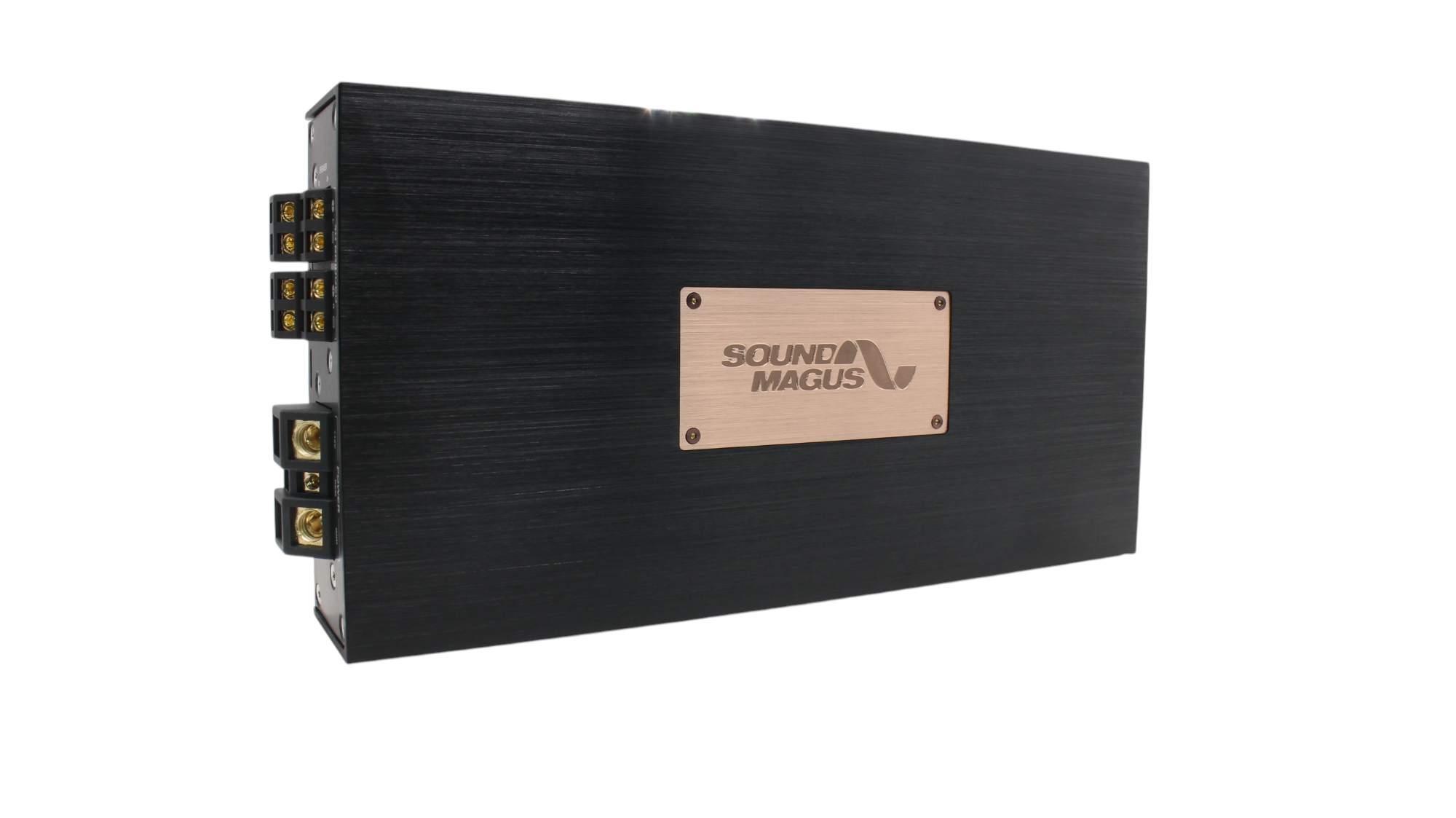

• Dimensions: 46 mm (H) × 128 mm (W) × 254.5 mm (L)

• Chassis Design: Optimized for space-constrained vehicle environments.

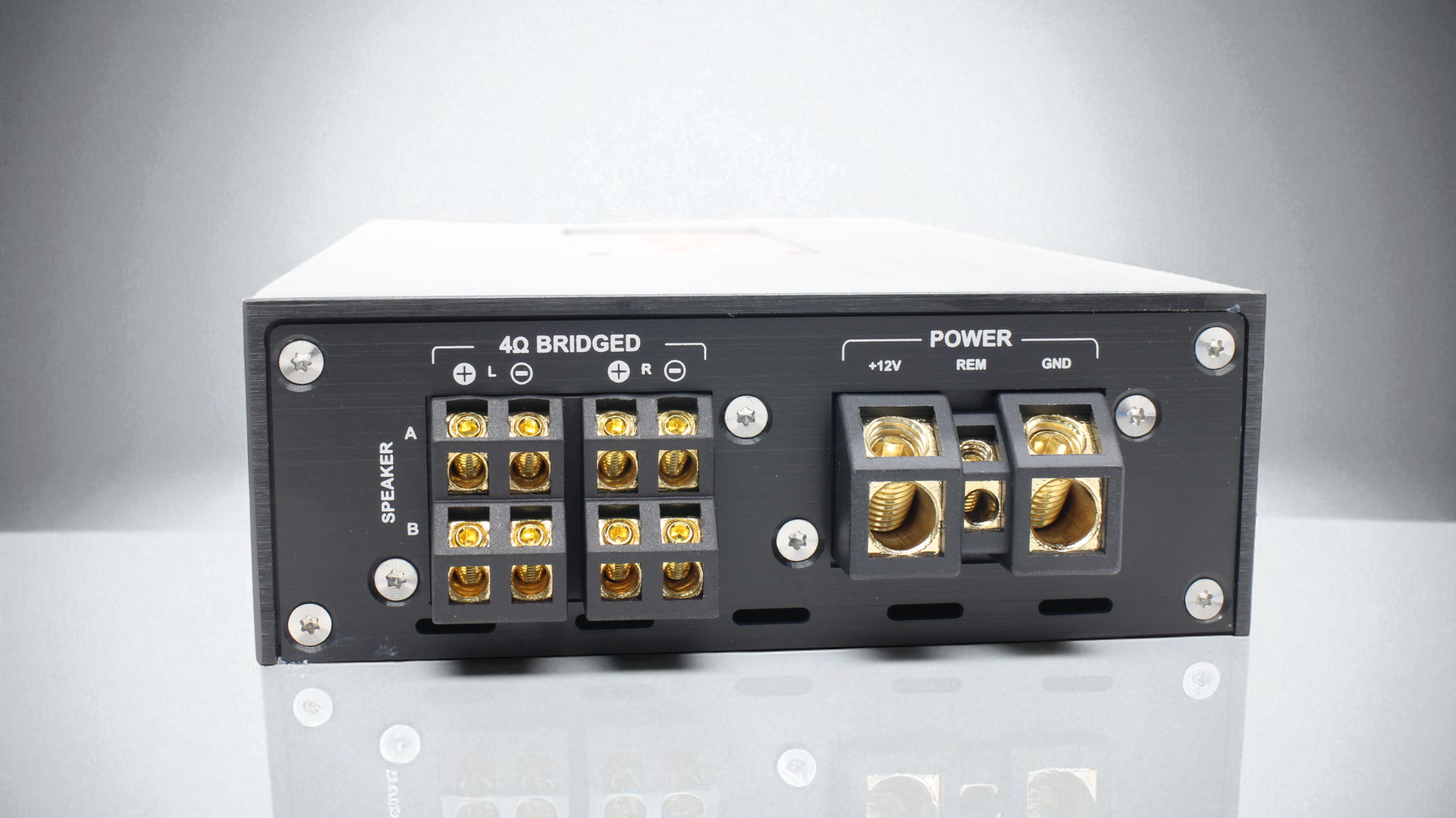

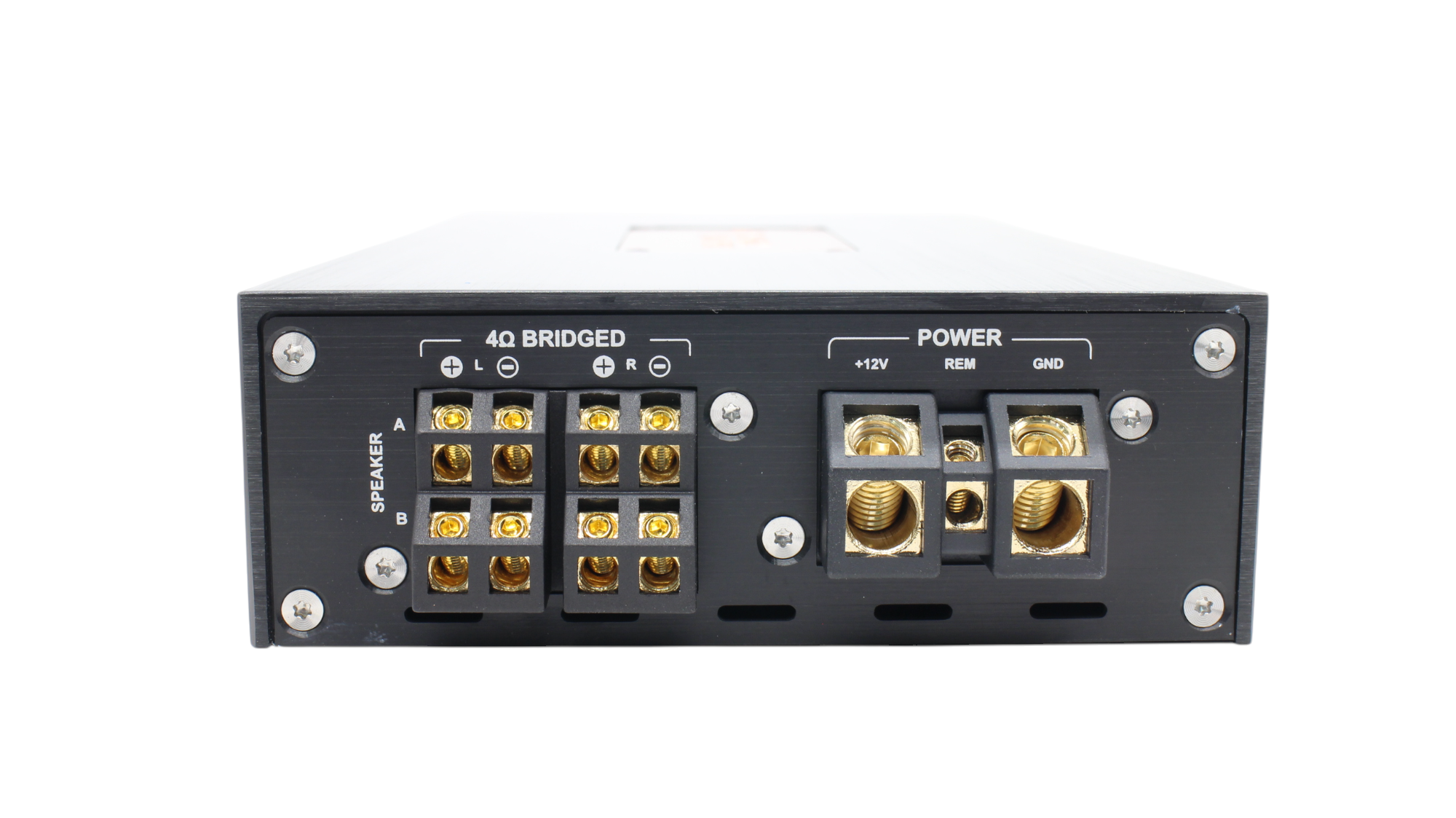

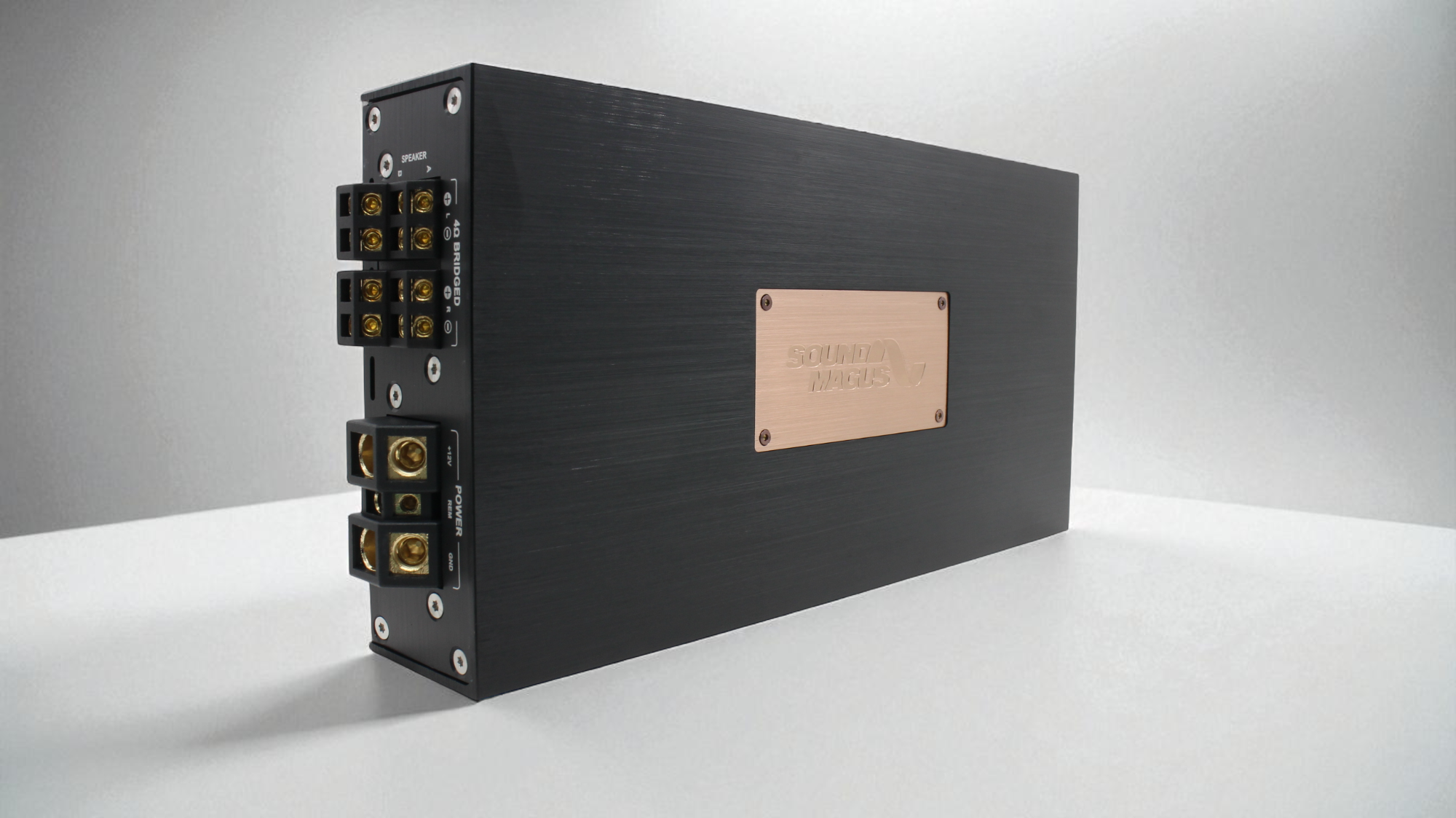

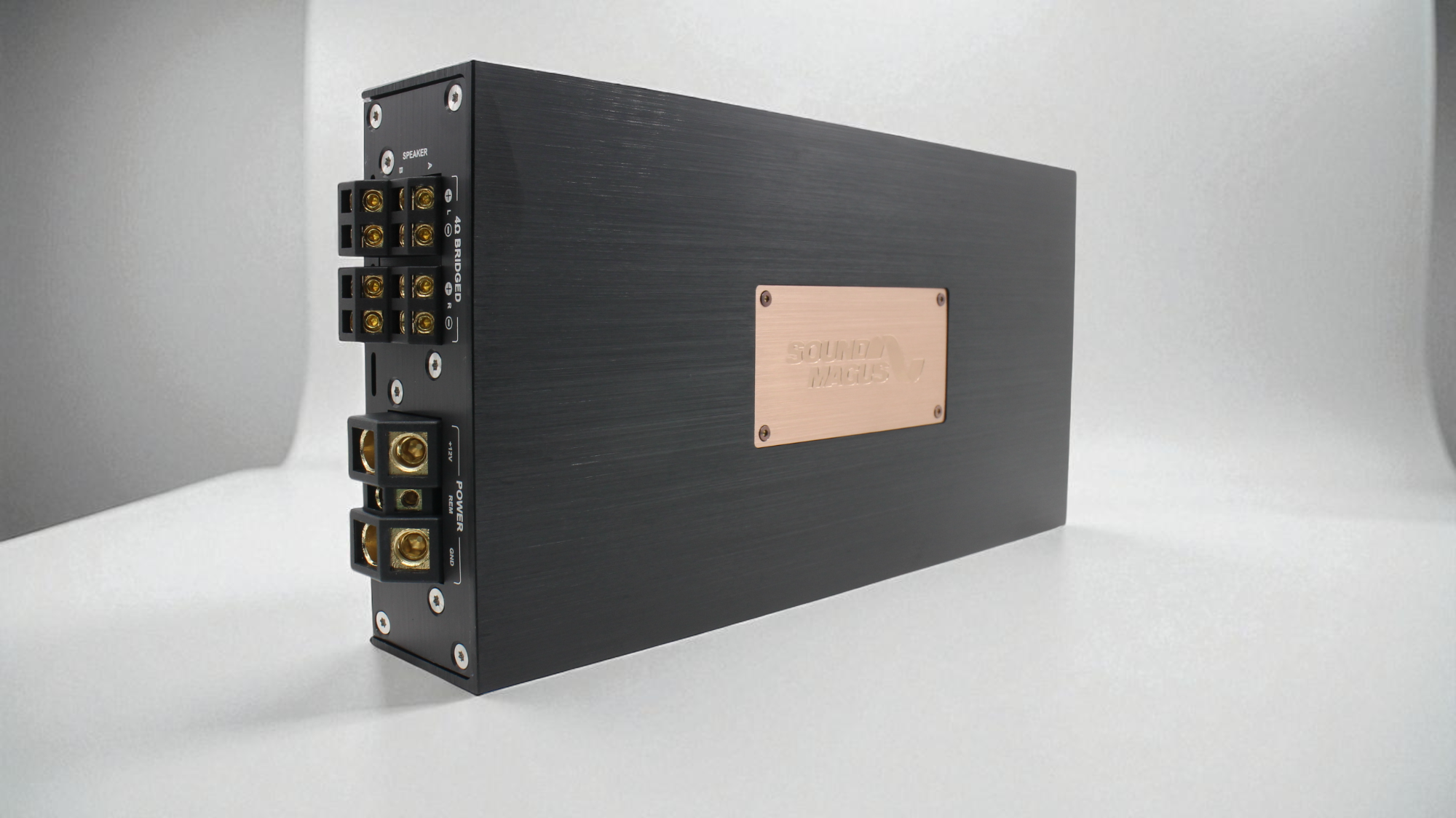

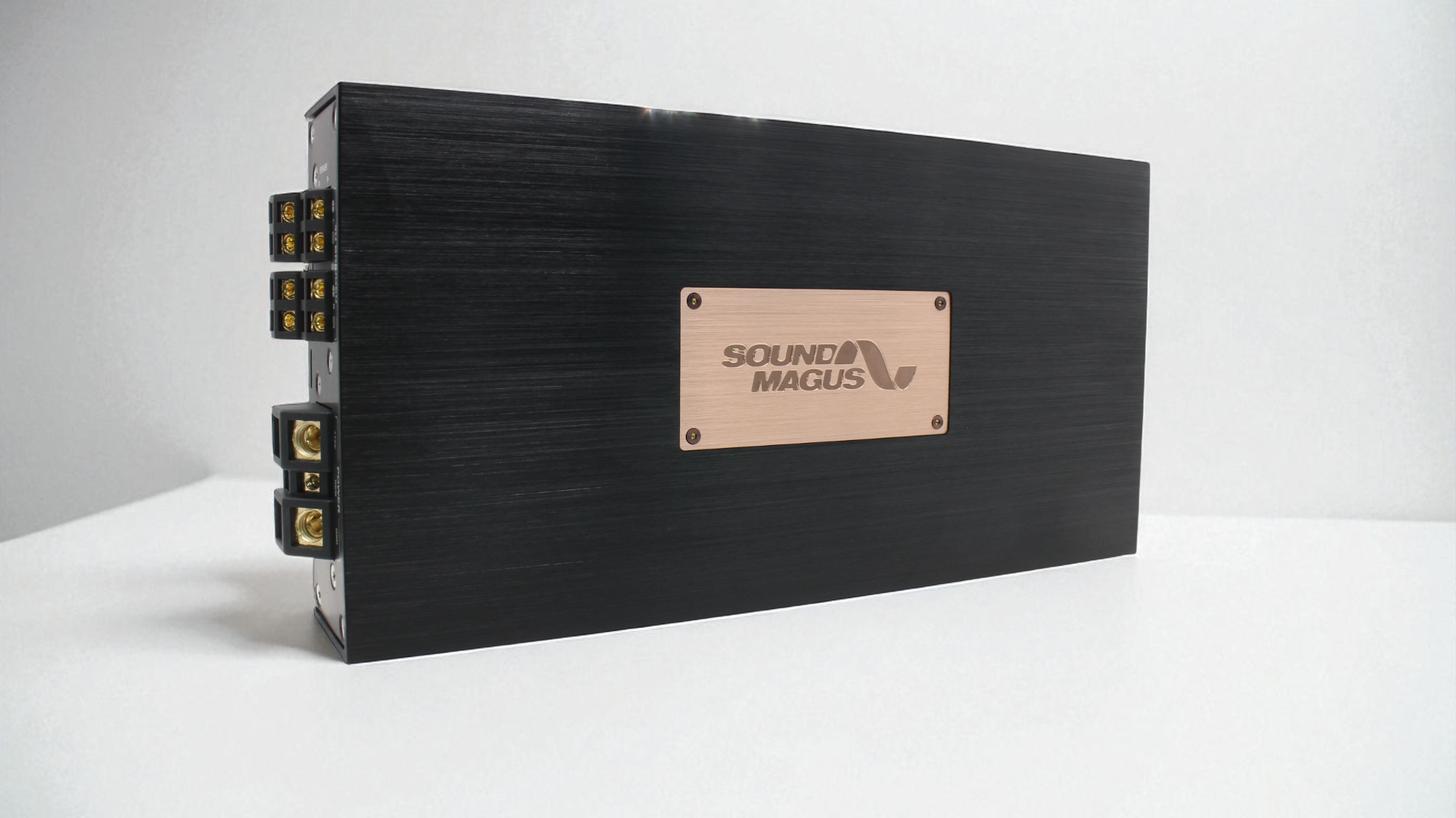

• Power Wiring: Supports 2–4 AWG conductors for stable current delivery.

• External Fuse Recommendation: 150 A for secure circuit protection.

Conclusion

The HD1200.4 Class D amplifier achieves a balance between compact installation, high output power, and audiophile-grade clarity. By leveraging advanced switching technology and robust protection circuits, it offers an efficient yet uncompromising solution for premium car audio systems.
