SOUND MAGUS CS1200.4

High-Efficiency Compact Class D Automotive Amplifier – Model CS1200.4

The CS1200.4 is a high-performance, compact Class D car audio amplifier engineered for audiophiles and system integrators requiring both power density and acoustic precision. Despite its small physical footprint, the CS1200.4 delivers substantial continuous power output with low distortion, ensuring faithful reproduction of high-definition audio across a wide frequency band. Incorporating advanced switching topology, robust protection circuitry, and flexible signal processing, the CS1200.4 is optimized for demanding automotive acoustic environments where efficiency, reliability, and clarity are paramount.

1. Introduction

Modern automotive sound systems demand amplifiers that combine high efficiency with uncompromising sound quality, all within limited installation space. The CS1200.4 addresses this challenge by employing a fully optimized Class D architecture, allowing high output power with minimal thermal overhead and compact dimensions. This makes it suitable for OEM upgrades, aftermarket installations, and high-fidelity custom systems where space and heat dissipation are constrained.

2. Electrical Performance

• Rated Continuous Power (RMS, 14.4 V):

  • 4 Ω stereo: 210 W × 4 channels

  • 2 Ω stereo: 300 W × 4 channels

  • 4 Ω bridged: 600 W × 2 channels

• Frequency Response: 20 Hz – 30 kHz (–3 dB)

• Total Harmonic Distortion + Noise (THD+N): <0.2% @ 30 W, 1 kHz, 4 Ω stereo

• Signal-to-Noise Ratio (SNR):

  • 93 dB (A-weighted) @ rated power

  • 75 dB (A-weighted) @ 1 W (CEA-2006)

• Operating Voltage Range: 7.5 – 16 V DC

• Input Sensitivity: 0.35–3.5 V (pre-input), 0.7–7 V (speaker-level input)

This performance envelope ensures compatibility with both OEM head units and aftermarket signal sources, while maintaining low distortion and high dynamic range across load conditions.

3. Protection and Reliability

Reliability is enhanced via multi-layer protection mechanisms, including:

• Overload protection

• Thermal shutdown (overheat protection)

• Under-voltage and over-voltage monitoring

The inclusion of DC offset–based auto turn-on further streamlines integration into modern vehicles where remote trigger lines may be absent.

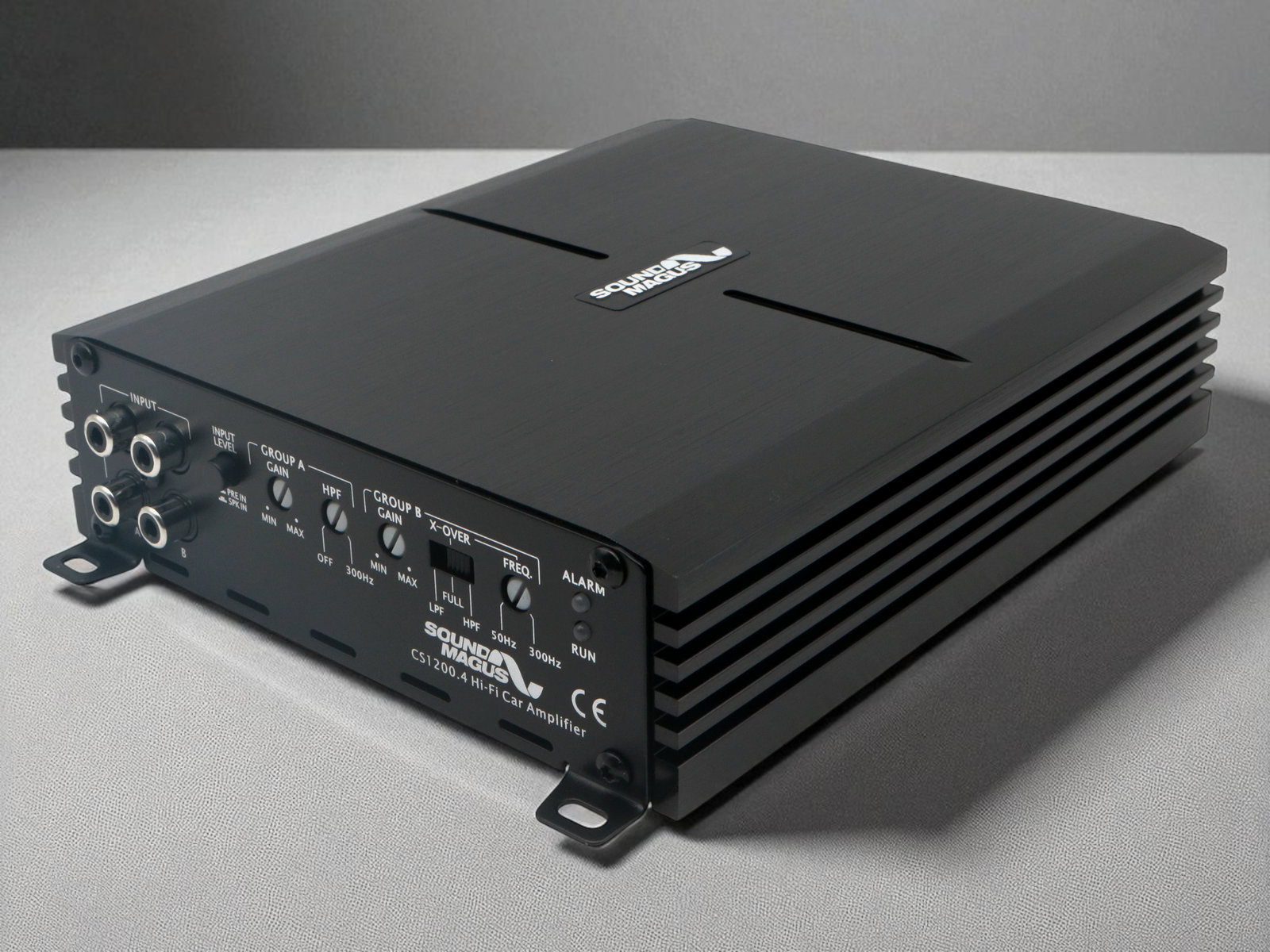

4. Signal Processing and Flexibility

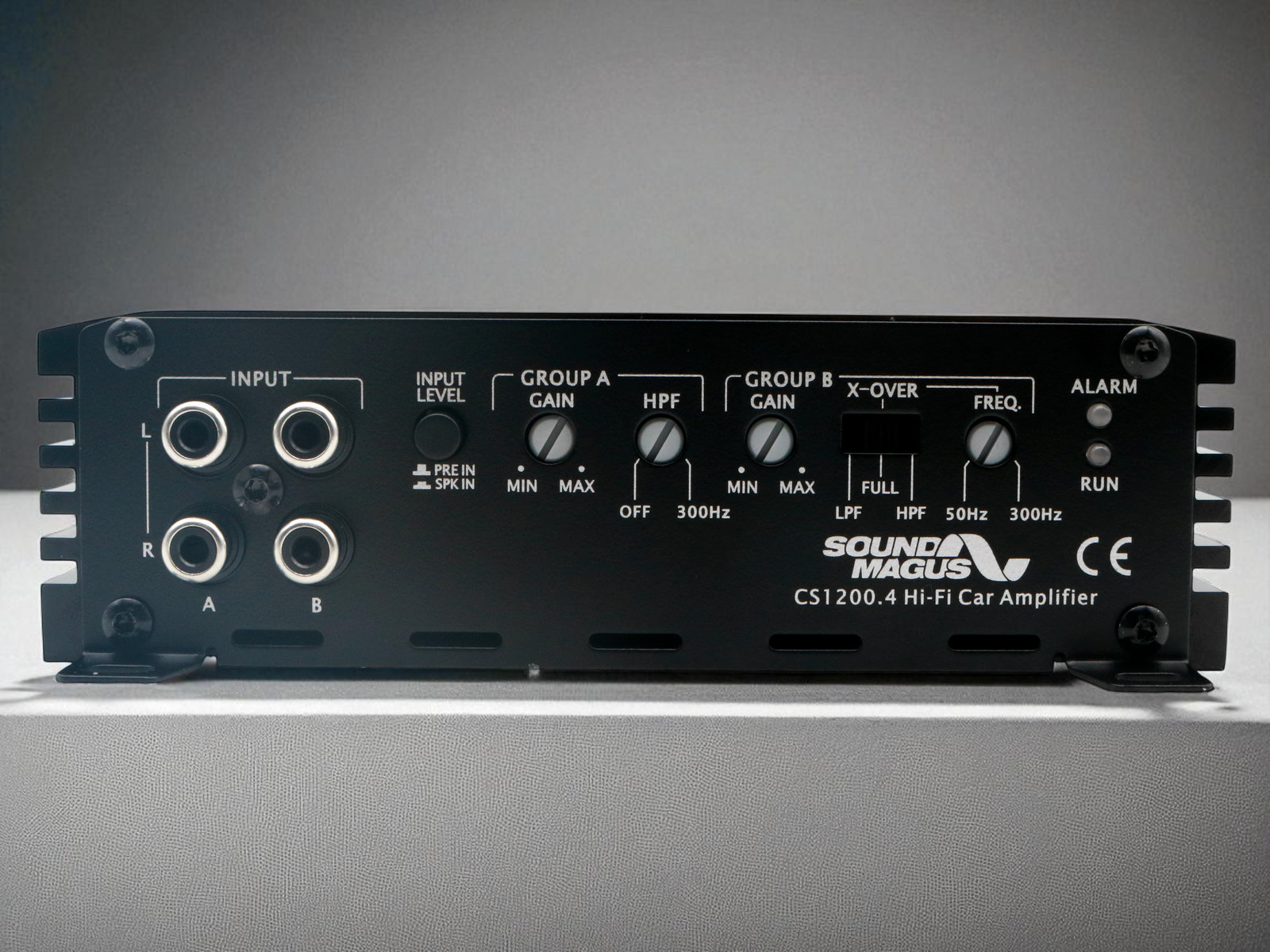

The CS1200.4 integrates configurable digital filtering with selectable Full Range, High-Pass Filter (HPF), and Low-Pass Filter (LPF) modes.

• Filter Slope: 12 dB/octave

• Group A HPF: OFF – 300 Hz

• Group B HPF/LPF: 50 – 300 Hz

This enables precise tailoring of crossover points for multi-way speaker configurations, ensuring optimal integration with component speakers, subwoofers, or full-range drivers.

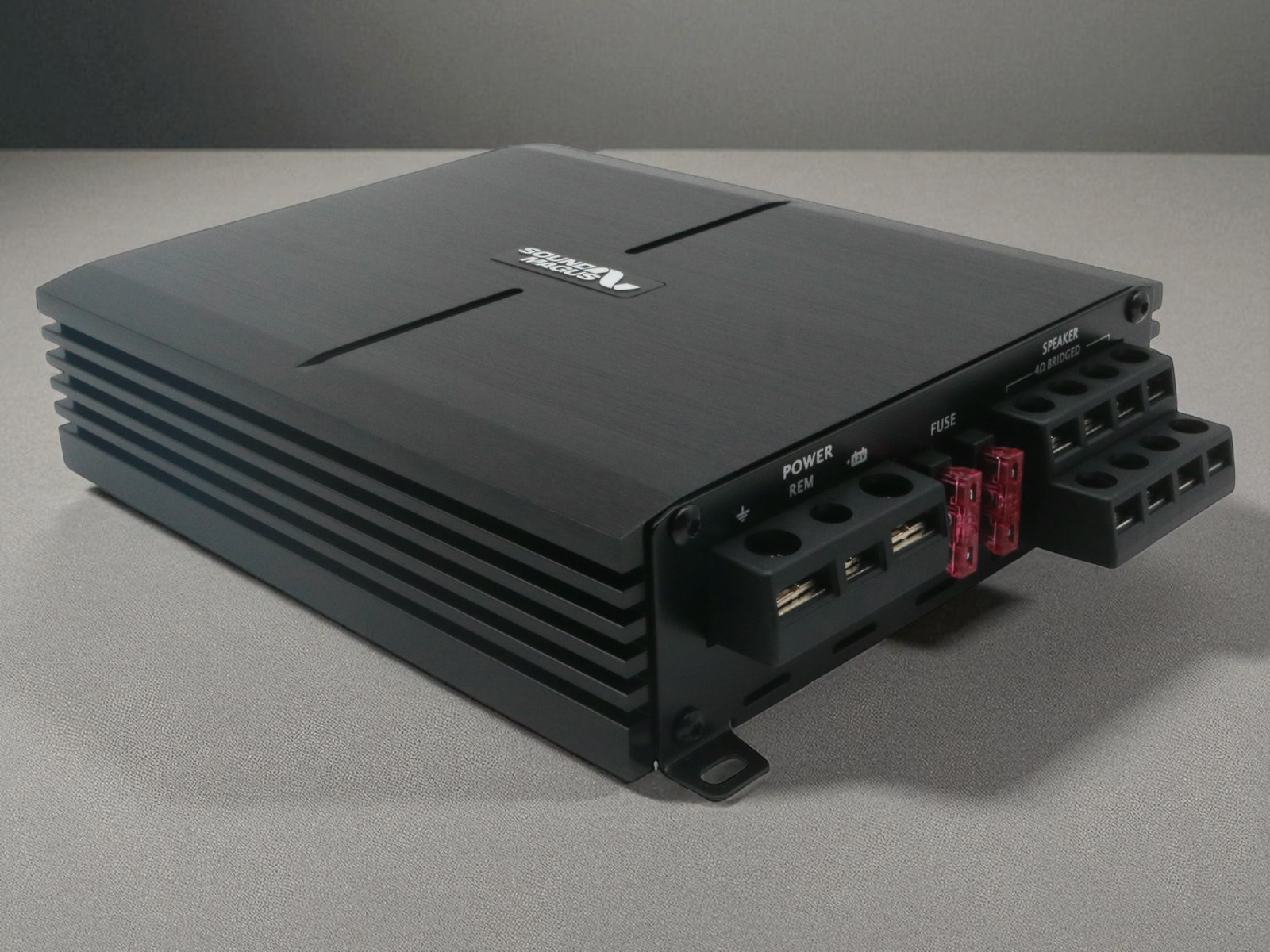

5. Physical and Installation

Despite its high output, the amplifier maintains a minimal footprint:

• Dimensions: 224.75 mm (L) × 155 mm (W) × 46 mm (H)

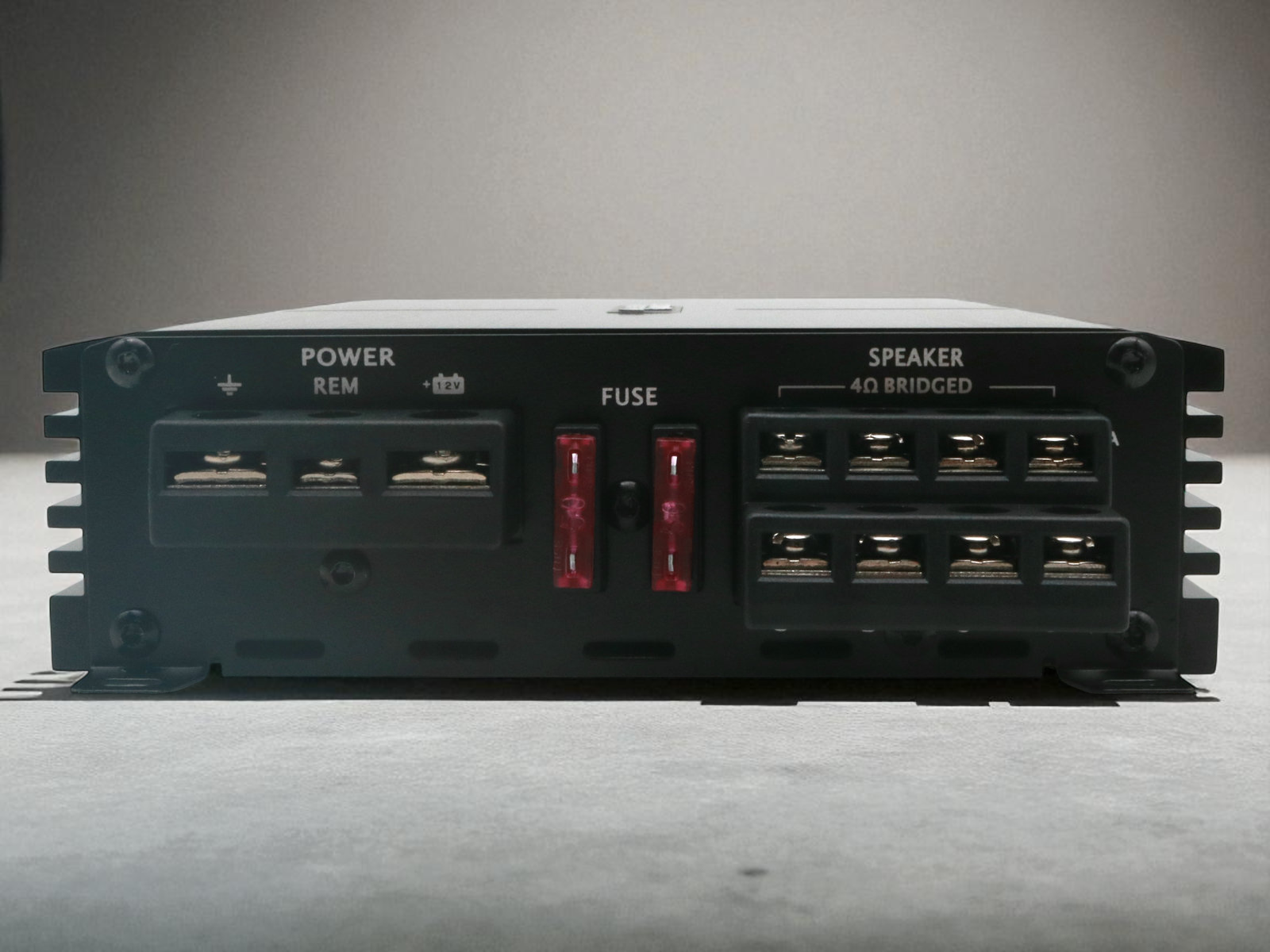

• Power/Ground Terminal: 2–4 AWG compatibility

• Fuse Rating: Dual 50 A

The compact dimensions and high power-to-volume ratio allow installation in restricted spaces, such as under seats or compact trunk enclosures, while ensuring efficient thermal dissipation.

6. Applications

The CS1200.4 is optimized for:

• High-fidelity multi-channel audio systems

• OEM system upgrades requiring compact integration

• Bridged high-output applications for subwoofers

• Demanding environments where thermal and space constraints are critical

The CS1200.4 exemplifies the next generation of compact Class D amplification, delivering efficiency, reliability, and audiophile-grade performance within a robust and installation-friendly chassis. Its advanced power delivery, flexible crossover architecture, and integrated protection mechanisms make it an ideal solution for automotive audio enthusiasts and system designers requiring uncompromised performance in compact form factors.
